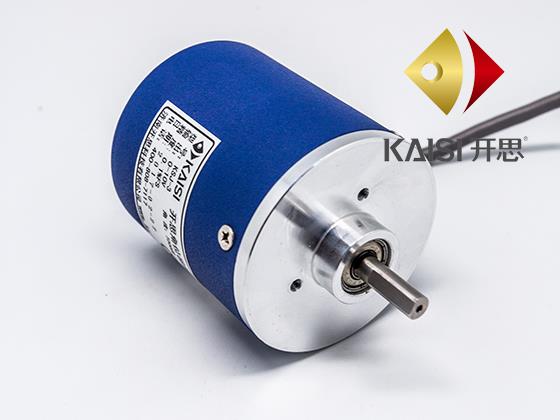

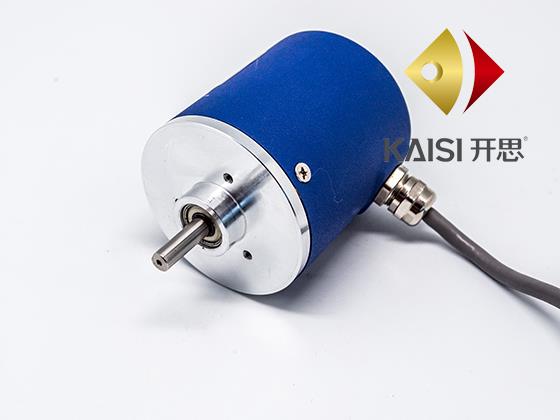

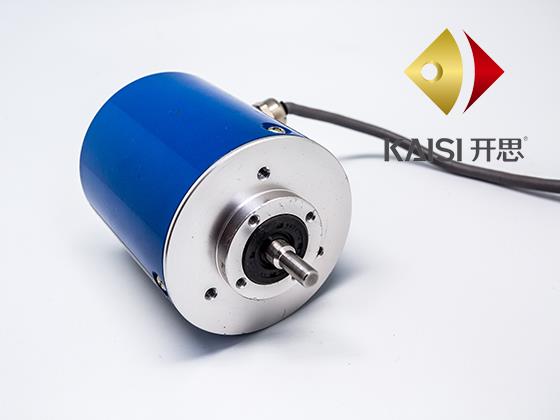

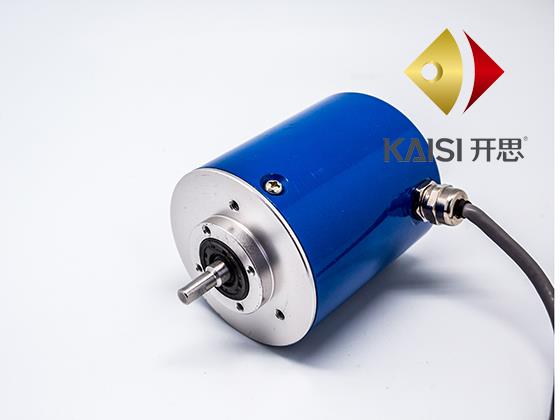

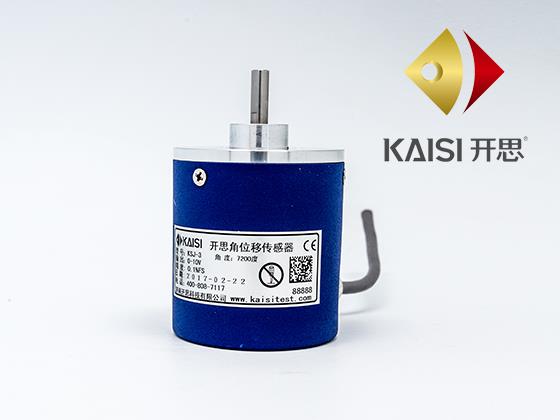

KSJ Series Multiple Ring Angular Displacement Sensor

hotline400-808-7117

Measurement Stroke 0-20 Circles,0-33 Circles,0-100 Circles

Signal Output 0-10K,0-5V,0-10V,4-20mA

Measurement Linearity 0.1%FS

Service Life 2 Million and 10 Million

Download

Signal Type	Analog Type
Measurement Stroke	0-7200°,0-11880°,0-36000°
Signal Output	0-10K,0-5V,0-10V,4-20mA
Linearity	0.1%FS
Reaptability	0.05%
Cable Length	2M(standard), or Customized
Service Life	2 million times to 10 million times
Power Supply	DC 24V
Working Temperature	-25-85℃
Protection Ingress	IP54(standard),IP65
Shell Material	Aluminium alloy with atistatic and nonconducting surface

Attention：
