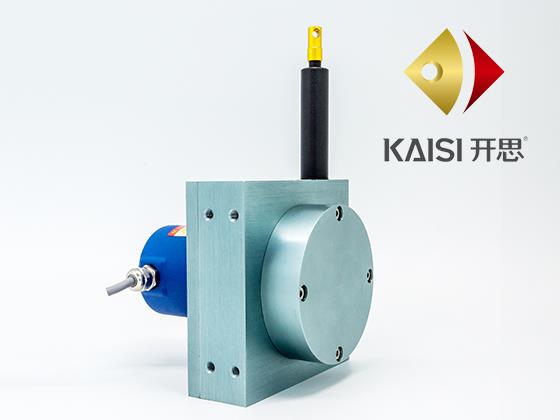

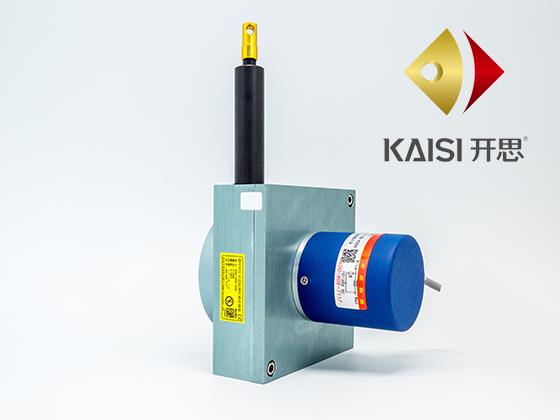

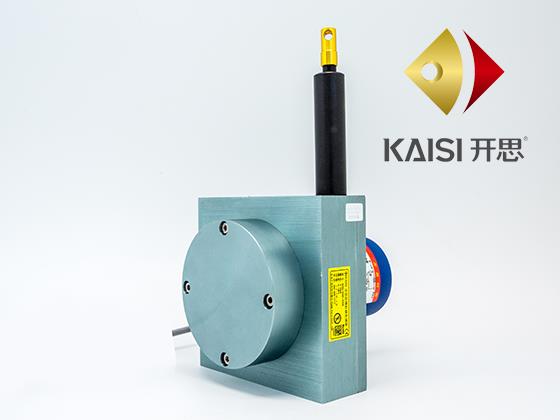

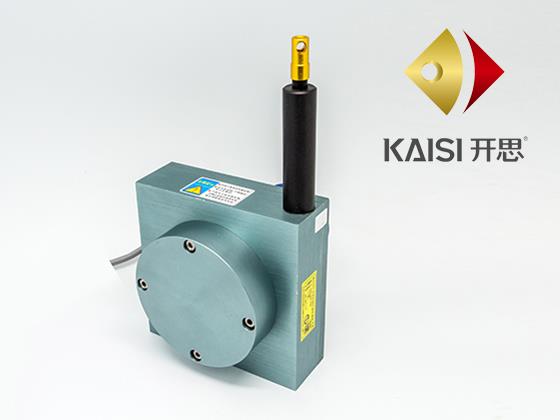

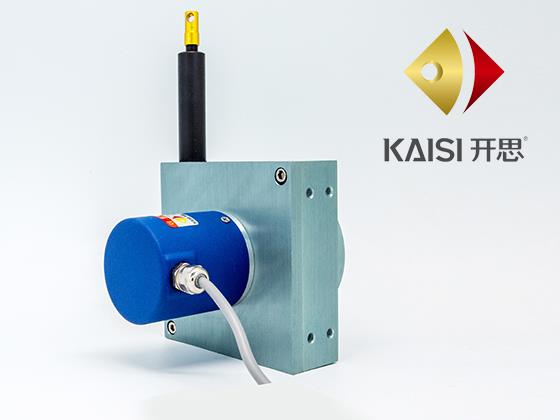

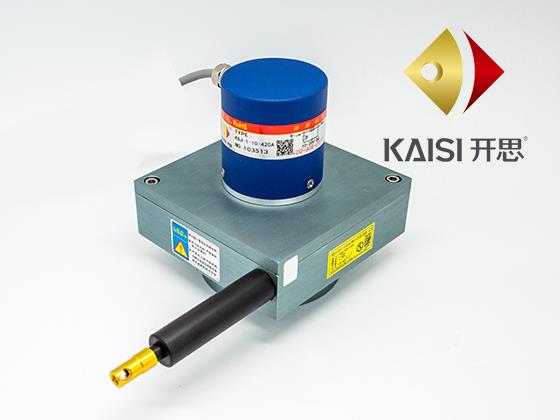

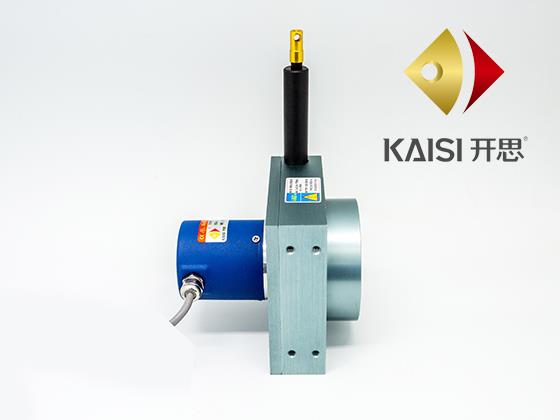

KS90 Analog Signal Draw Wire Position Sensor
KS90 draw wire position sensor, its max measurement stroke is 5000mm, and circumference of measurement wheel is 300mm. It is the classic draw wire position sensor of KAISI, and has been applied for many situation after 5 year test by market. And it has achieved CE and RoHS already. It includes two patents of KAISI, and imitation is not permitted.
- parameters

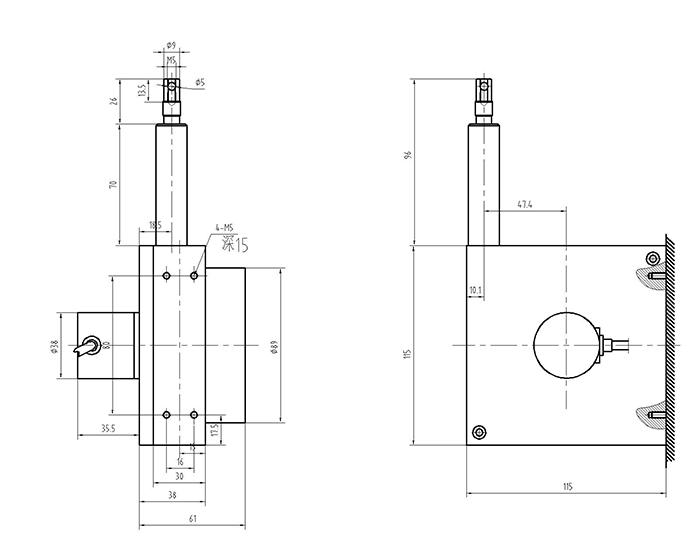

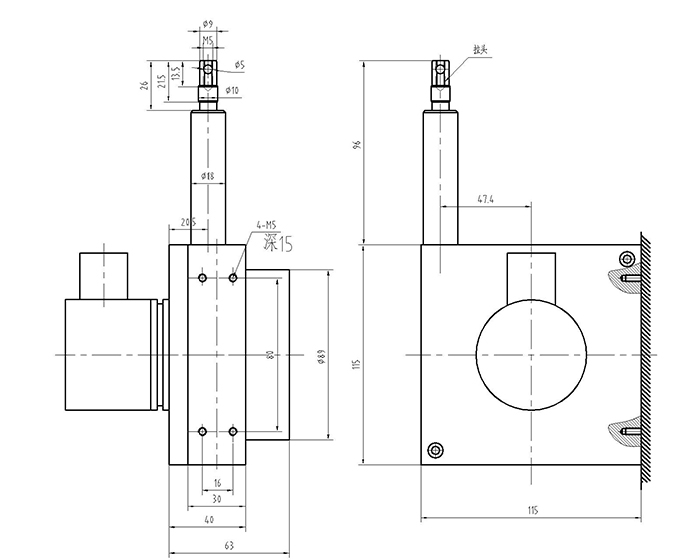

- size
- method
Measuring Stroke | 0-5000mm | Stainless Steel | High flexibility rope with plastic coating |
Sensor Type | precision potentiometer | Outlet Pulling Power | 10N |
Signal Output | 0-5k、0-10k、0-5v、0-10v、4-20mA | Repeated Speed(max) | 600mm/s |
Linearity | 0.1%FS | Resolution | Infinitesimal |
Repeatability | 0.01% | Zero and Full | Adjustable |
Service Life | 2million to 5million | Working Power | 24v、10-30v |
Cable Length | 2M(standard) or customized | Reciprocating | 20 Hz |
Working Temperature | -45-125℃ | Anti-vibration | 10Hz to 1500Hz，10G |
Shell Material | Aluminium Alloy with antistatic and nonconducting surface | Protection Grade | IP54（standard），IP65 |
1. As draw wire position sensor is high precision instrument, please no knocking when install, otherwise it will influence the quality and service life.
2. Make sure the connection is absolutely right, otherwise it will destroy the inner electric circuit.
3. Make sure the signal output and power supply cable is separated, also it is not suitable to use aside the distribution board.
4. Make sure the pulling end is vertical to the outlet, and keep the angle degree no more than 3°.
5. Make sure the distance and measurement stroke is no more than the measurement range of sensor from fixed pulling end to the initial position of movement components.
6. As it will break the wire and sensor itself, please do not let go the rope when it is pulled out by hand or machine.
7. Make sure the steel rope not destroyed by outside force.
8. Please insult KAISI protection outlet and housing, if working environment is outdoor or too bad(have dust or water).
